NST NEUTRAL AND SUPPLY TESTER

Meter installers use the NST Tester when placing smart meters on domestic and commercial switchboards. The Dewar NST Tester indicates a safe or unsafe condition by measuring voltage as well as impedance in relation to the connected active, neutral and reference earth.

The M1120-v2 unit is for performing Neutral & Supply Testing as outlined in the VESI Installation Supply Connection Tests & Procedures Manual.

Use the NST Tester to ensure the incoming active and neutral power connections have been correctly identified and are safe to use before reconnecting the main power.

Features of the NST Tester M1120-V2

CAT IV 600V compliant instrument

The M1120-v2 NST carries out automatic internal self checks to ensure correct functionality of the instrument.

The M1120-v2 is a self-powered, passive device. It takes its power directly from the connection point, which means you won’t have to worry about flat batteries or battery replacement.

The M1120-v2 is a compact unit with a lightweight, heavy-duty case. Its impact resistance case has an IP54 moisture and dust ingress rating.

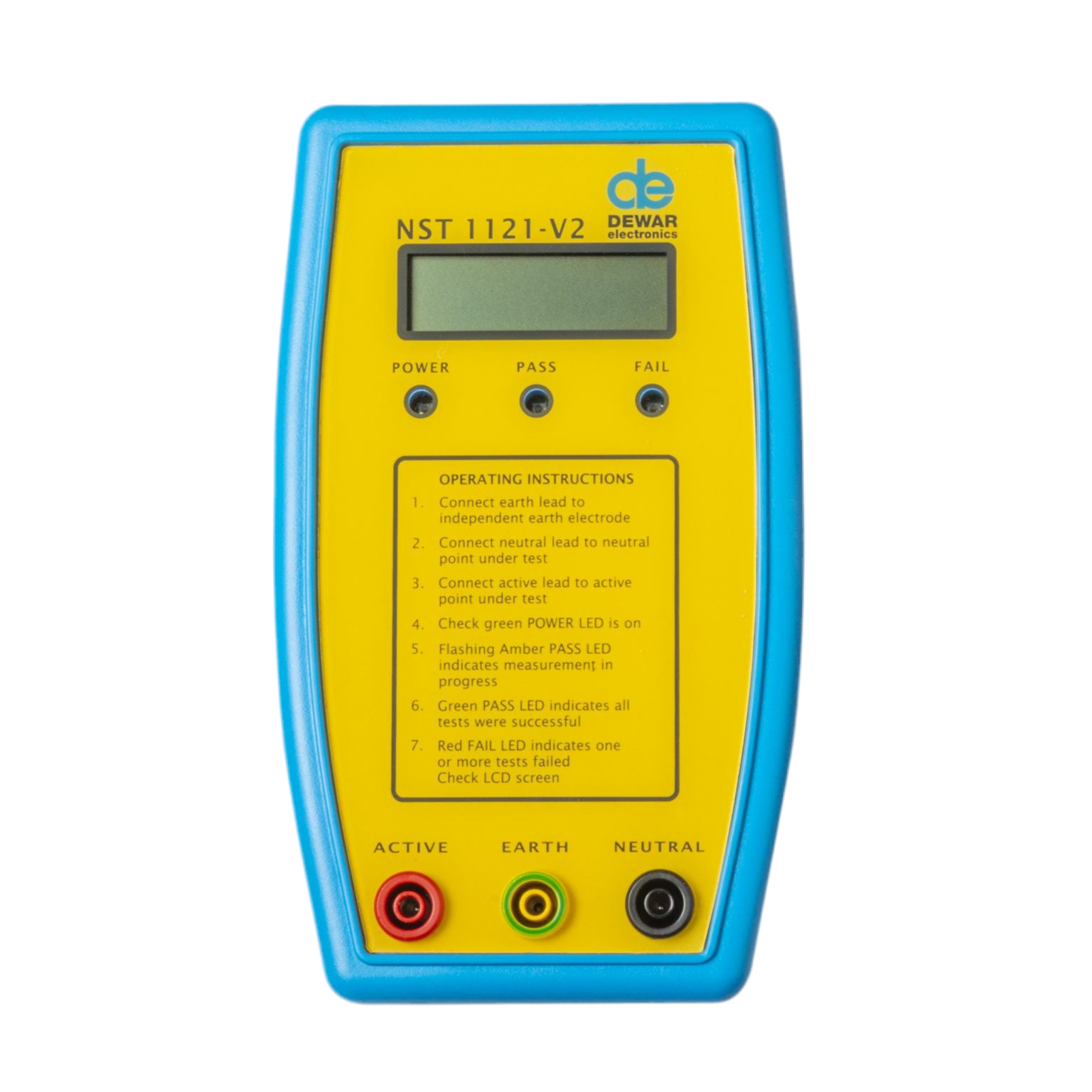

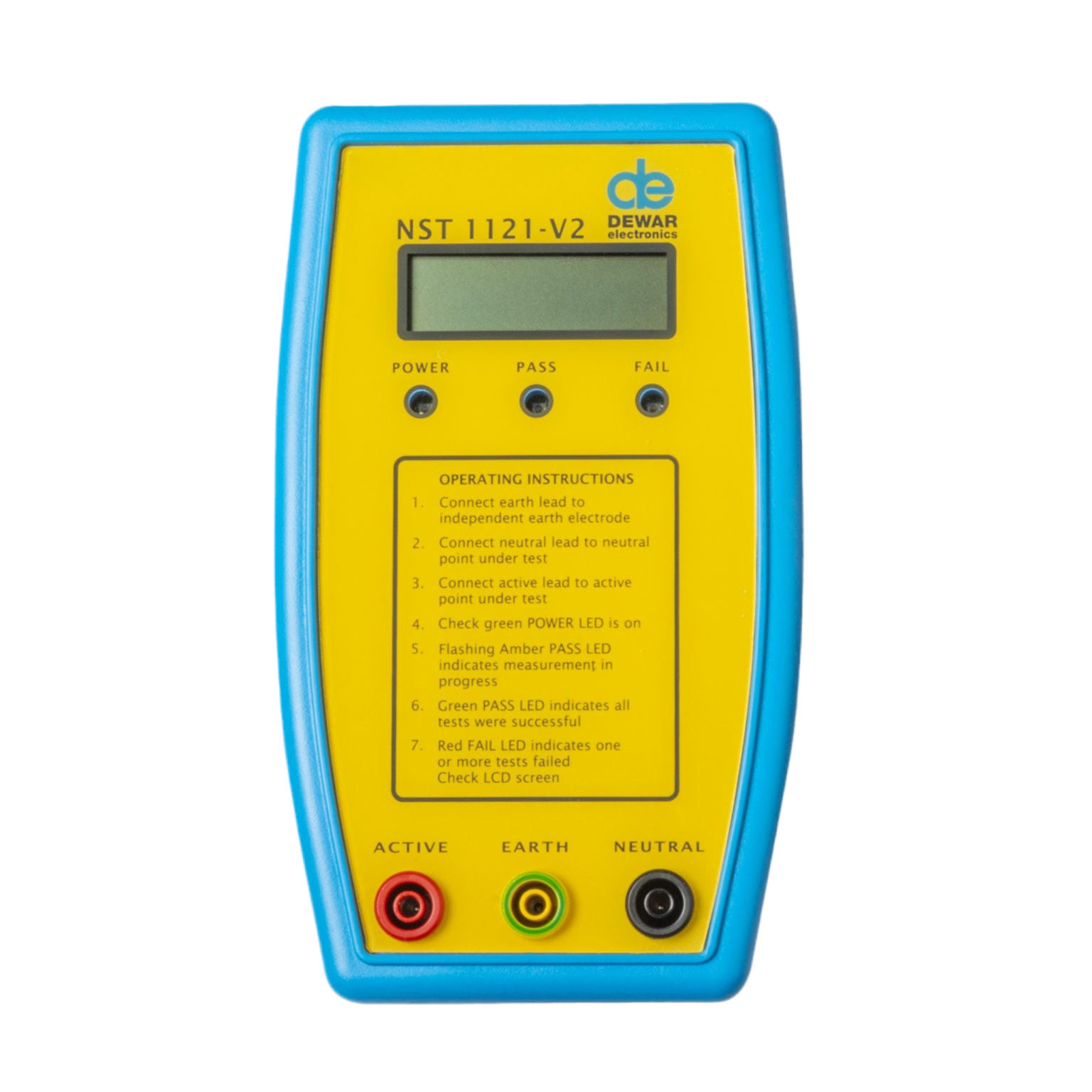

The front panel has an easy to read LCD screen for measurement information and 3 LED status indicators.

An internal audible alarm acts as a secondary indicator to indicate a pass/fail at the end of the measurement cycle.

The M1120-V2 can be retrofitted with Bluetooth (no screen save).

Items included in the box

• NST Tester M1121-V2
• CAT IV 600V  lead set
• Hanging Clip
• Female Socket Earth Alligator Clip
• Female Socket Neutral Alligator Clip
• Female Active Probe
• User Manual
